SOLAR COLLECTORS

> LASER WELDING
> BLUETECH TREATMENT
> BLACK/LINE OUTER FRAME
> 10-YEARS WARRANTY
> BATTERY UP TO 8 COLLECTORS

Description

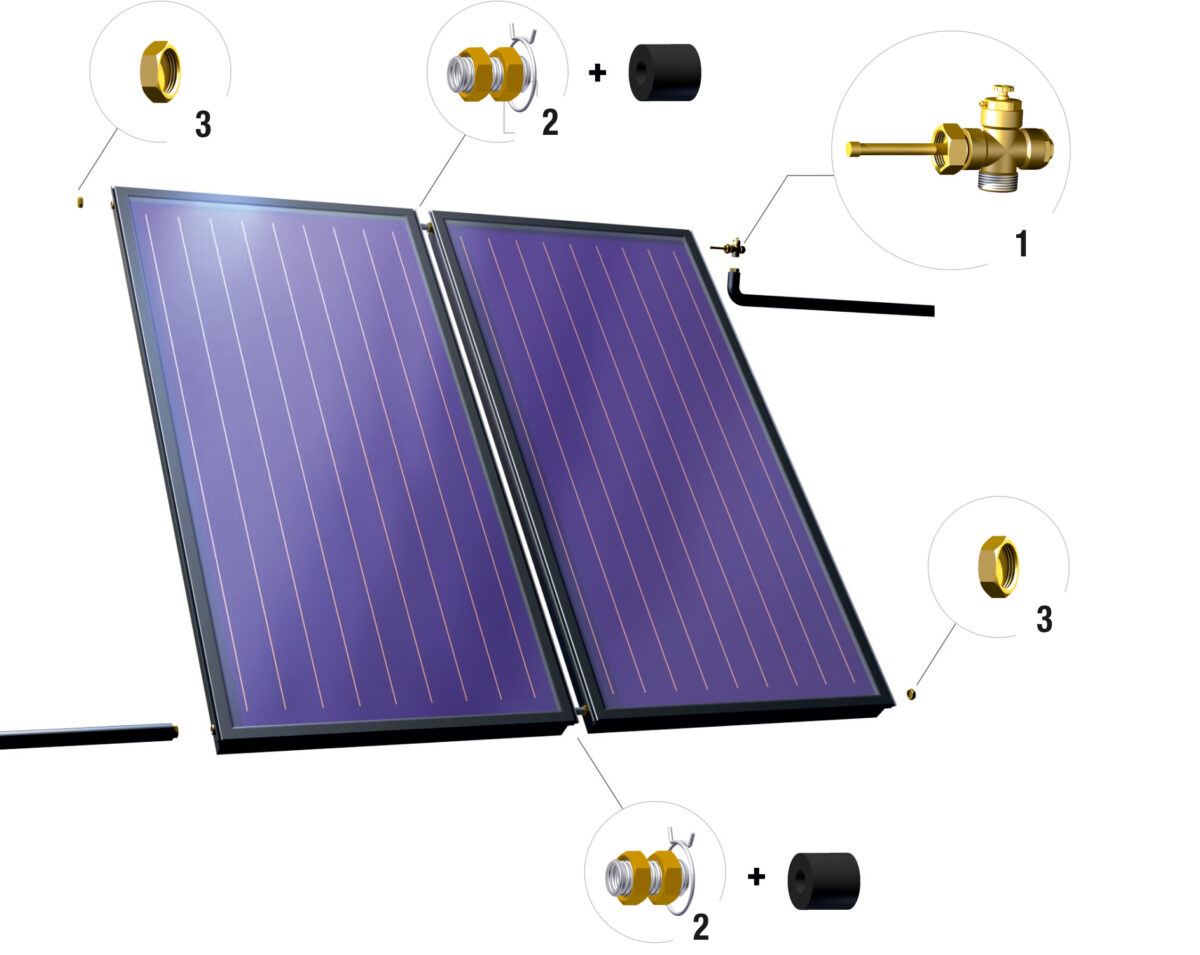

CONNECTION COMPONENTS FOR SOLAR COLLECTORS

collettori-solare-comp-p-60 collettori-zpks-dt

Additional information

IMPORTANT

IN STANDARD ARRANGEMENT IT IS ALLOWED TO CONNECT UP TO 8 FLAT PLATE COLLECTORS IN PARALLEL OR 5 PIECES IN SERIES.

TECNOLOGIE AVANZATE DI PRODUZIONE ASSORBITORI

The factory where the absorbers are manufactured is based on two new technologies, i.e. ultrasonic welding for copper absorbers and laser welding for aluminium absorbers. Joining of sheet with absorber piping without additional fi ller metal provides for maximum mechanical strength of the connection. According to the tests, the highest heat transmission is provided by the two above-mentioned technologies, where the contact of the absorber’s plates with its pipes takes place through the base material (copper-copper, aluminium-copper, aluminiumaluminium). The previously widely used absorber soldering technology required increasing the contact area between the sheet and piping, to ensure transfer of heat through the fi ller metal with up to 8 times lower thermal conductivity as compared to copper.
